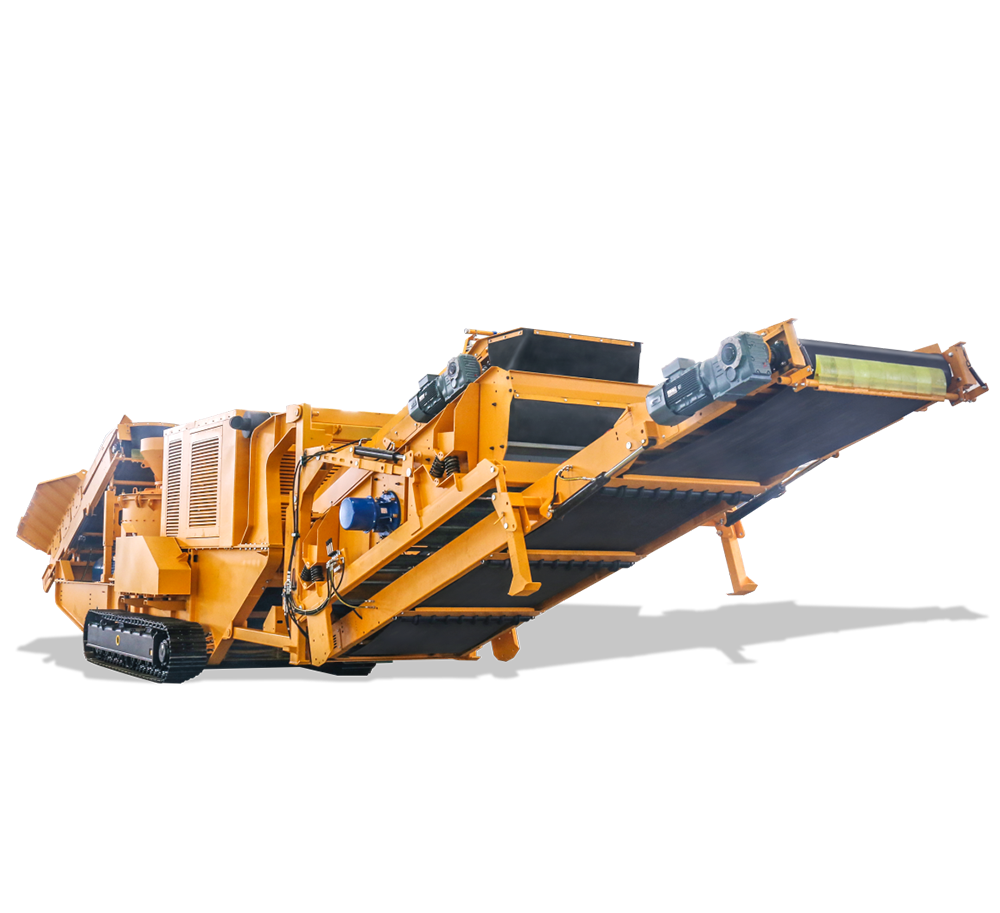

EMC300(RS)TRACK MOUNTED MOBILE IMPACT CRUSHER

It is a high-efficiency crushing equipment integrating feeding, screening and crushing, designed to meet the strict requirements for product quality. This series of products has undergone rigorous testing and is designed with high performance and reliability, which can meet the requirements of different working conditions and provide high-quality and high-quality finished products.

The user-friendly equipment characteristic control system optimizes equipment production capacity, simplifies the frequency of operation and maintenance, improves stable production time, and comprehensively improves equipment performance and overall safety.

The oil-electric powerful cone crusher can handle the most challenging working conditions. With a range of equipment options for specific process requirements, you'll benefit from excellent maneuverability and high-quality process performance, enabling efficient production in both quarrying and resource recovery applications.

Applicable working conditions
EMC300(RS)
  • Technical features
  • Equipment parameters
  • Engineering cases
  • Similar recommendations
Technical features

1. Optimize fuel efficiency;

2. The current sensor can adjust the feeding and optimize the crushing output;

3. Electric drive, oil and electricity dual-purpose, adapt to a variety of complex environments;

4. User-friendly PLC control system and color screen, easy to operate;

5. For the impurities in the feed material, the metal detector can provide you with maximum production stability and iron protection (optional parts);

6. An optional pre-screening device can increase the crushing output and improve the service life of the wear-resistant parts of the equipment (optional parts).

equipment parameters
UsageIt is used for secondary crushing in the secondary and tertiary crushing stages, and is suitable for the regeneration and utilization of medium and high hardness natural stones and mine ore resources.
Maximum feeding rate340t/h
Maximum feeding size200mm(Medium coarse crushing cavity)
Feeder adjustable size10-45mm
Power364kW
WeightAround 68t
Transportational size(L×W×H/mm)19000×3200×3920
Operational size(L×W×H/mm)19600×7100×5400
